Amplitec C23L Tri-Band-KIT Legal Signal Booster
What Our Products Offer
Boost Signal on 2G, 3G & 4G LTE
Operate on B8, B3 & B1 Tri-Band
Covers Approx: 1000 m²
Suitable for Homes, Offices & Buildings
Automatic Gain & Power Control
Installation Service Country Wide
Delivery Fee Will Be Calculated at Checkout
With many people working from home on a full time basis and kids requiring internet for school and recreation, stable internet is a necessity. Network operators understand this and are in the process of expanding their capacity not only with cellular base stations but also by obtaining more spectrum from ICASA. This will enable LTE to be used to its full potential in South Africa. 5G is fast emerging and will as the network operators establish their network coverage produce staggering data speeds and will unleash new and exciting products. This however will also bring new challenges wrt signal penetration and new design antennas which SD Experts is already geared for.
Safe and Secure Online Shopping or Walk-in
In Cellular & Wireless Since 2007
Walk in & Call-in Support/Testing/Repair
Free Delivery To Major Centre With A Courier Depot
All Products are NCRC and ICASA Type Approved
Installers throughout South Africa
- 12 Month Manufacturers Warranty
- Can Be Upgraded for Additional Coverage
- Easy Installation - Installers Available in SA

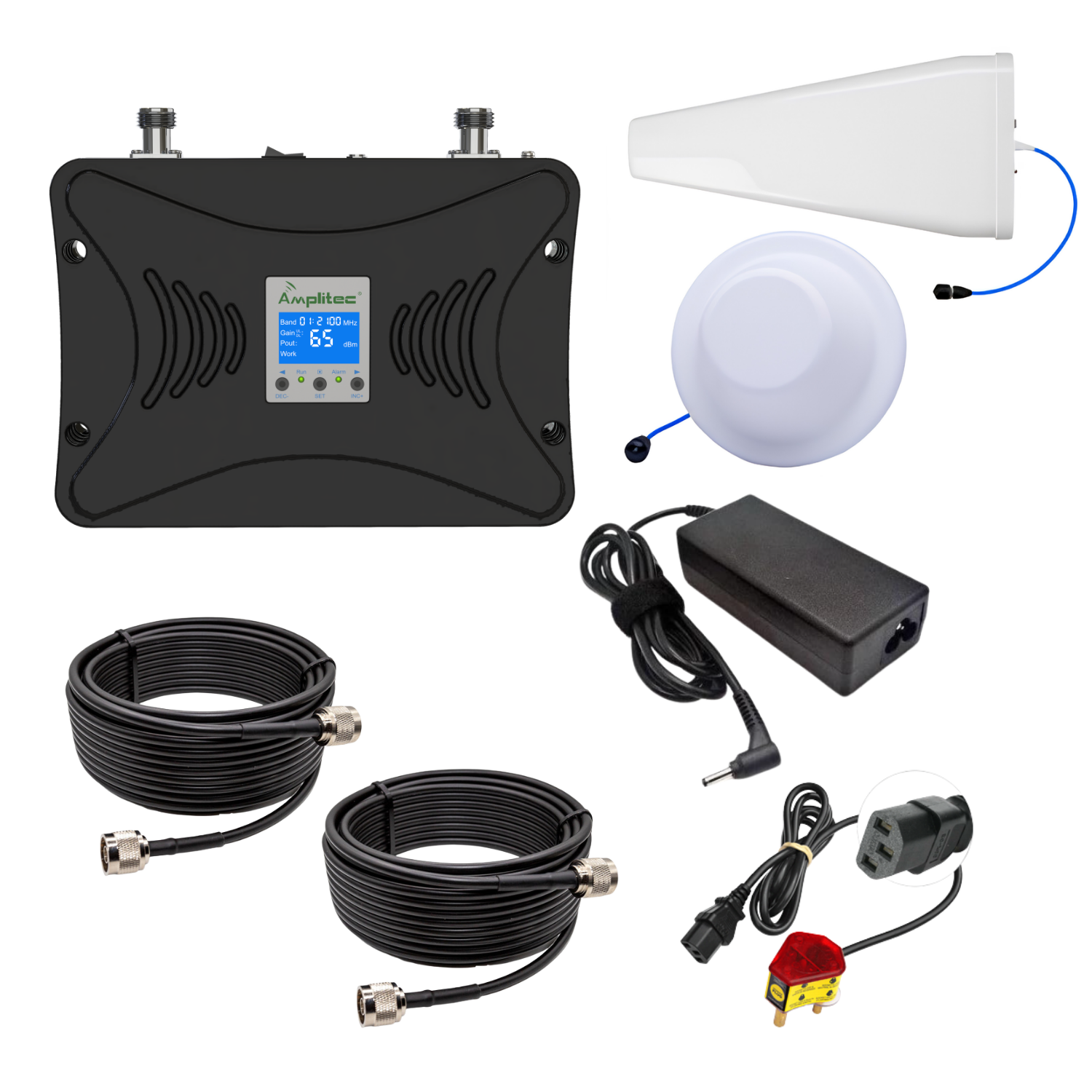

Whats in the box:
- 1 X C23L TRI-BAND Signal booster (includes installation brackets and screws).
- 1 x Power Adapter.
- 1 x Surge Plug with 1,5met cable.
- 1 x LPDA outdoor antenna (with installations brackets).
- 1 x 10met LWC-240 super low loss cable for outdoor antenna.
- 1 x Ceiling indoor antenna (through ceiling mounting).
- 1 x 10met LWC-240 super low loss cable for indoor antenna.
- 1 x Installation instruction pamphlet.
- ICASA Type Approval stickers op the box and the product
- Factory test report

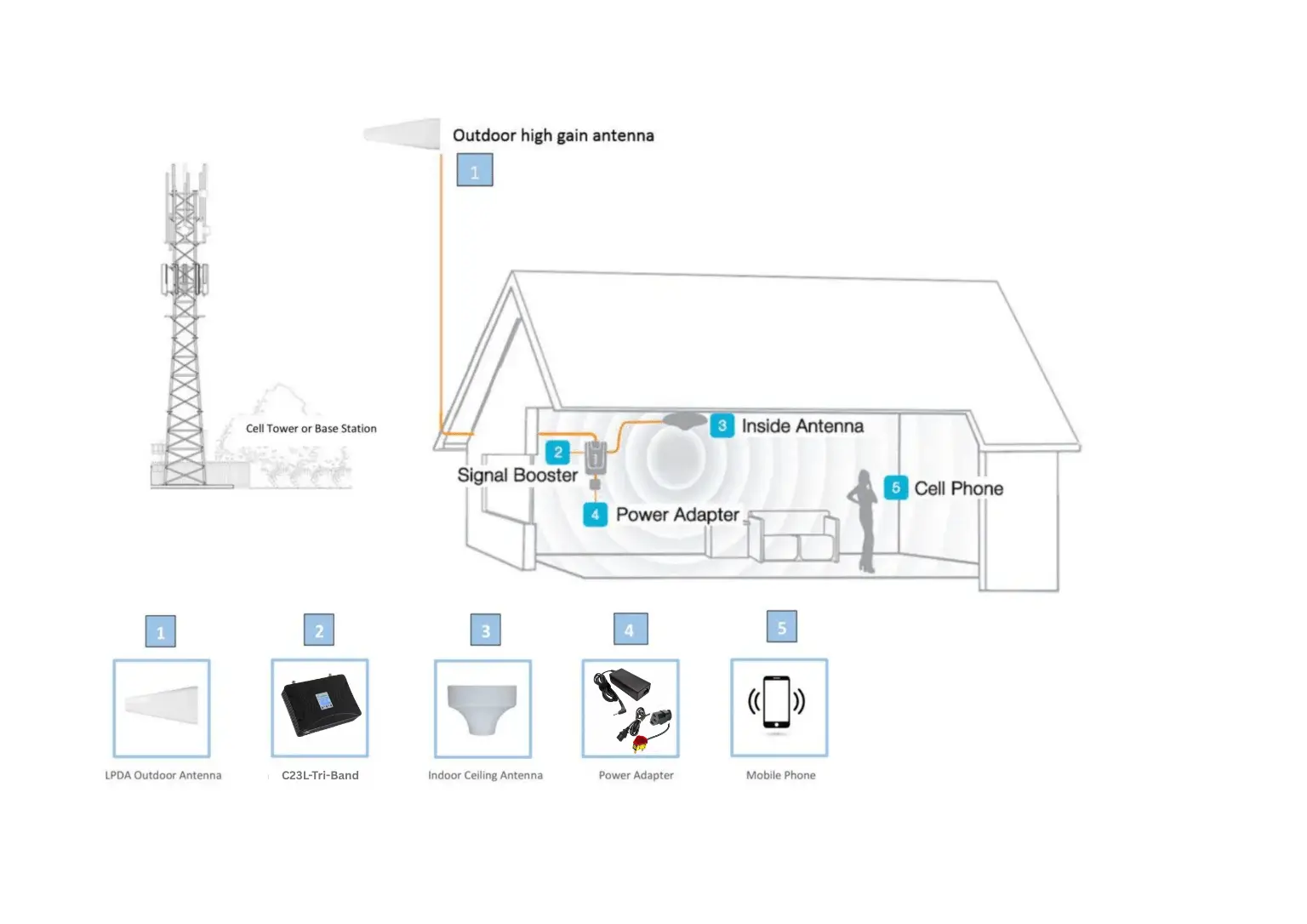

How it works:
Description

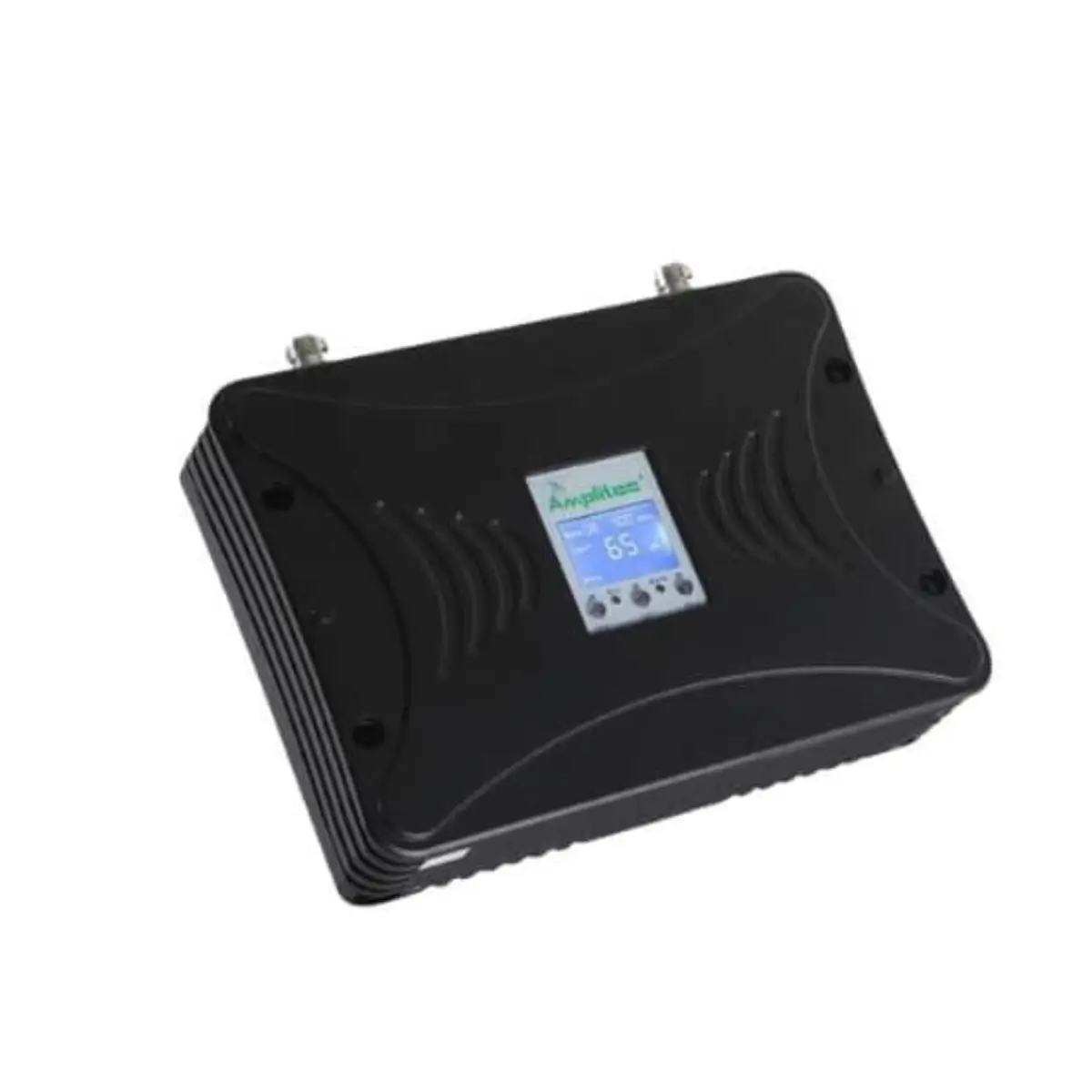

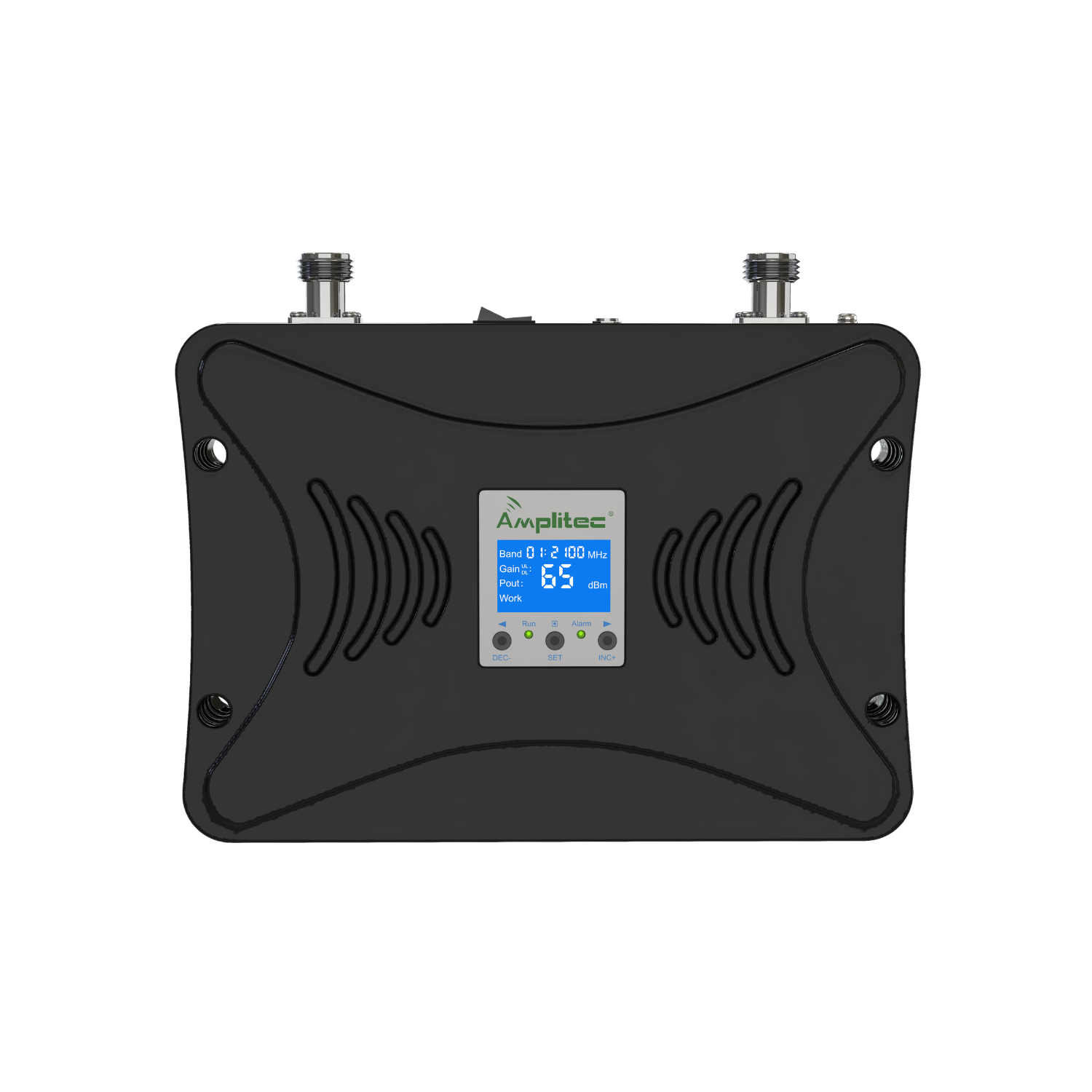

Signal Boosters 75dB gain – Amplitec C23L Tri-Band-KIT
The C23L is a 23dBm signal boosters with 75dB gain that will easily give coverage to medium size home or large open plan office. With Tri-Band coverage, 2G, 3G, LTE is amplified indoors. Expected coverage is 1000m² under ideal conditions with additional antennae up 16 can reach 3000m². Has super features like ASO Automatic shut-off if any oscillation starts.
Sleep mode power saving mode. Dormant Uplink until making a call which puts less noise on the network.
AGC the automatic adjusting of 20dB gain to ensure that unstable signal booster does not drop calls.
MGA Manual gain attenuation function where base stations are upgraded.
A LCD display where all adjustments and readings are easily accessed.
Causes no interference to the BTS base station. 12Vdc adaptability.
The Perfect Signal Booster For a Large Home or Large Open plan office
Additional information
| Weight | 6 kg |
|---|---|
| Dimensions | 51 × 42 × 20 cm |
| C23S Models | C23S-GSM 900, C23-GD 900/1800, C23S-GW 900/2100, W20L-TRI-BAND 900/1800/2100 |
