Amplitec C23S- GSM-KIT B8 Legal Signal Booster
What Our Products Offer
Boost Signal on 2G, 3G, 4G
Fix Poor Cellphone Signal
Largest Range of Repeaters and Antennas
Best Retail Prices with Shipping Included
After Sale Service
Technical Advise
Delivery Fee Will Be Calculated at Checkout
With many people working from home on a full time basis and kids requiring internet for school and recreation, stable internet is a necessity. Network operators understand this and are in the process of expanding their capacity not only with cellular base stations but also by obtaining more spectrum from ICASA. This will enable LTE to be used to its full potential in South Africa. 5G is fast emerging and will as the network operators establish their network coverage produce staggering data speeds and will unleash new and exciting products. This however will also bring new challenges wrt signal penetration and new design antennas which SD Experts is already geared for.
Safe and Secure Online Shopping or Walk-in
In Cellular & Wireless Since 2007
Walk in & Call-in Support/Testing/Repair
Free Delivery To Major Centre With A Courier Depot
All Products are NCRC and ICASA Type Approved
Installers throughout South Africa
- 12 Month Manufacturers Warranty
- Can Be Upgraded for Additional Coverage
- Easy Installation - Installers Available in SA

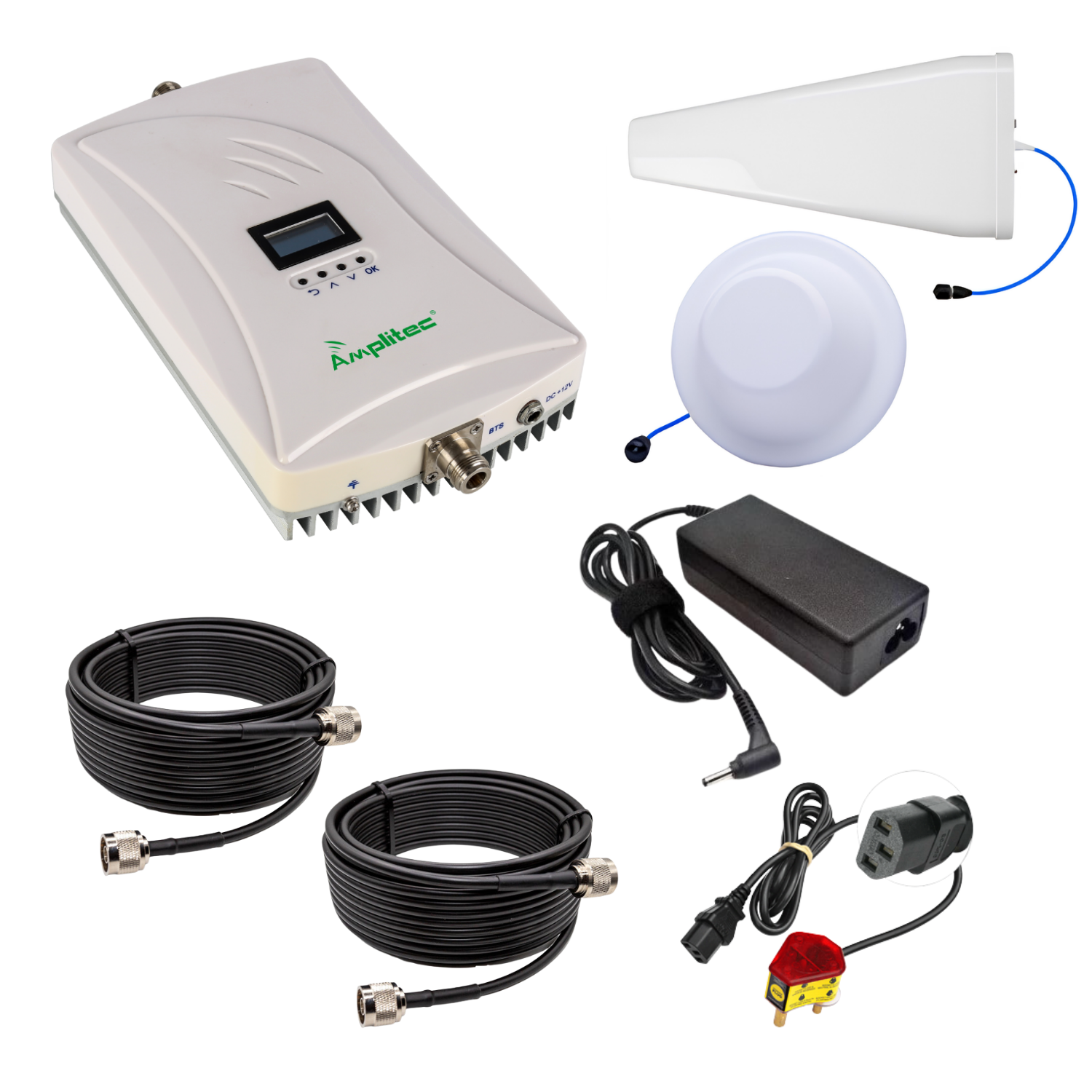

Whats in the box:
- 1 X C23S GSM Signal booster (includes installation brackets and screws).
- 1 x Power Adapter.
- 1 x Surge Plug with 1,5met cable.
- 1 x LPDA outdoor antenna (with installations brackets).
- 1 x 10met LWC-240 super low loss cable for outdoor antenna.
- 1 x Ceiling indoor antenna (through ceiling mounting).
- 1 x 10met LWC-240 super low loss cable for indoor antenna.
- 1 x Installation instruction pamphlet.
- ICASA Type Approval sticker on the appliance and on the box
How it works:
Description

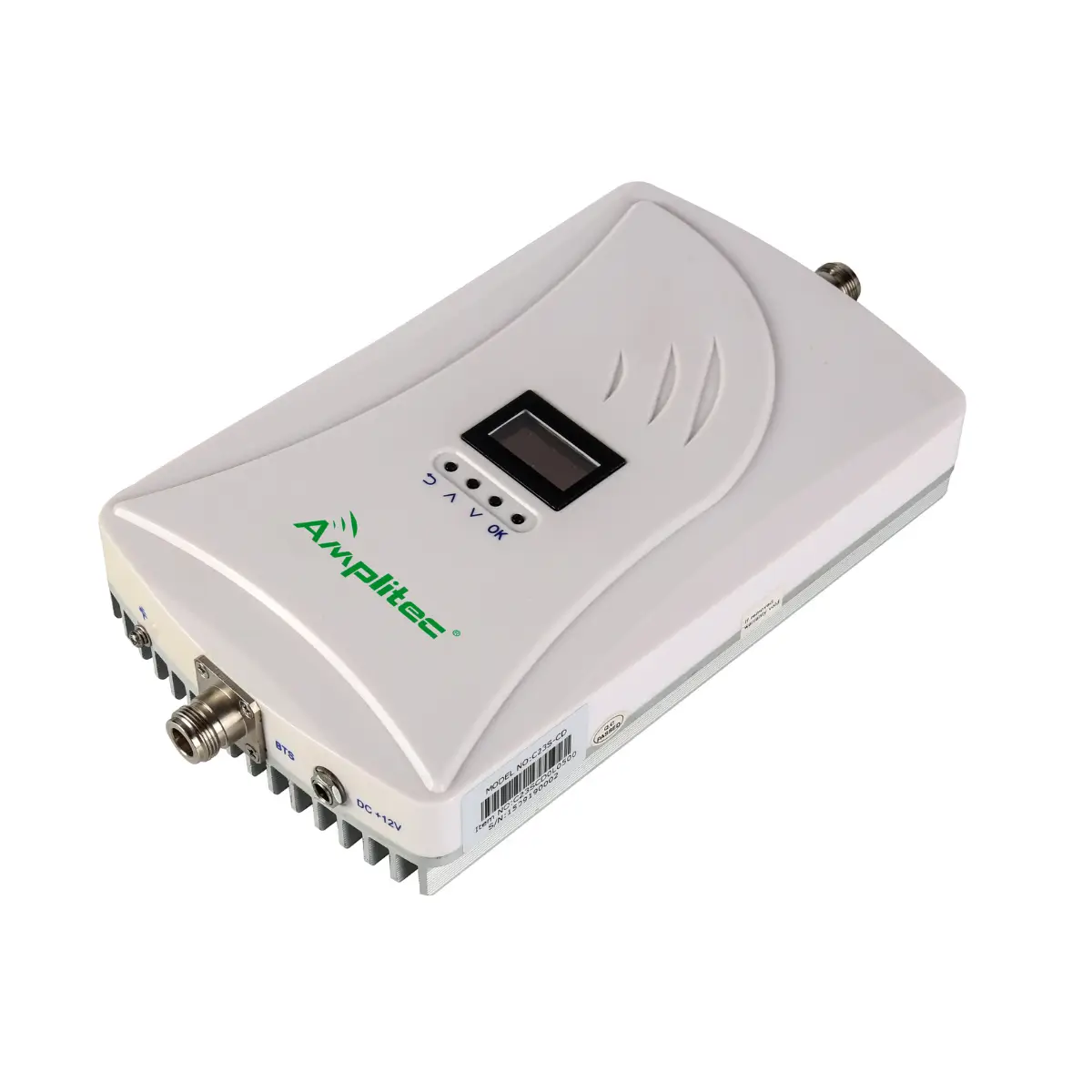

Amplitec C23S-GSM-KIT Legal Signal Booster with 70dB Gain
The Amplitec C23S Signal Booster for cell phones has a powerful 23dBm O/P and is a solution designed to enhance signal strength in large homes or large open-plan offices. With a gain of 75dB, this GSM900 signal booster can provide reliable coverage ranging from > 3000m² and drive a large DAS throughout eg, a double story home. See our video case study on large home coverage.
Supplied as a standard kit
- 1 X C23S GSM Signal booster (includes installation brackets and screws).
- 1 x Power Adapter.
- 1 x Surge Plug with 1,5met cable.
- 1 x LPDA outdoor antenna (with installations brackets).
- 1 x 10met LWC-240 super low loss cable for outdoor antenna.
- 1 x Ceiling indoor antenna (through ceiling mounting).
- 1 x 10met LWC-240 super low loss cable for indoor antenna.
- 1 x Installation instruction pamphlet.
- 12 month factory warranty (T&C apply).
- Repaired in South Africa.
Key Features:
- 75dB Gain: Ensures robust signal coverage for larger arias.
- ASO Automatic Shut-Off: Automatically shuts off if continuous oscillation is detected, preventing signal interference.
- Sleep Mode: Activates power-saving mode when not in use.
- Dormant Uplink: Reduces network noise by remaining dormant until a call is made.
- AGC (Automatic Gain Control): Automatically adjusts 20dB gain up and down to maintain stable signal strength and prevent dropped calls.
- MGA (Manual Gain Attenuation): Allows manual adjustment of gain when base stations are upgraded.
- LCD Display: Provides easy to read dashboard of all adjustments and signal readings.
- No BTS Interference: Designed to cause no interference with the base station when installed correctly.
- Completely DAS (distributed antenna system) compatable
12V DC Adaptability: Compatible with standard 12V DC 3A power sources.
The Amplitec C23S Signal Booster is ideal for ensuring strong, uninterrupted signal coverage in large homes or expansive office spaces. Optimize your connectivity and experience fewer dropped calls with this top-tier signal booster.
DOWNLOAD DATASHEET(ZIP) >>
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 51 × 42 × 20 cm |
| C23S Models | C23S-GSM 900, C23-GD 900/1800, C23S-GW 900/2100, W20L-TRI-BAND 900/1800/2100 |
