LPDA Antenna Steel 698~4000MHz (14dBi) Black. 2G,3G, LTE,WiFi 5G
What Our Products Offer
Frequency Range:
617-960 MHz | 1710-2700 MHz | 3300-4000 MHz
Gain: 12 dBi | 14 dBi | 12 dBi
Largest Range of Repeaters and Antennas
Best Retail Prices with Shipping Included
After Sale Service
Technical Advise
Delivery Fee Will Be Calculated at Checkout
With many people working from home on a full time basis and kids requiring internet for school and recreation, stable internet is a necessity. Network operators understand this and are in the process of expanding their capacity not only with cellular base stations but also by obtaining more spectrum from ICASA. This will enable LTE to be used to its full potential in South Africa. 5G is fast emerging and will as the network operators establish their network coverage produce staggering data speeds and will unleash new and exciting products. This however will also bring new challenges wrt signal penetration and new design antennas which SD Experts is already geared for.
Safe and Secure Online Shopping or Walk-in
In Cellular & Wireless Since 2007
Walk in & Call-in Support/Testing/Repair
All Products are NCRC and ICASA Type Approved
Installers throughout South Africa
- 12 Month Manufacturers Warranty
- Can Be Upgraded for Additional Coverage
- Easy Installation - Installers Available in SA
Kit Includes:
- 1 x LPDA antenna
- 1 x Complete bracket set
- N/Type female termination
- Shipping size 48 x 22 x 8 cm
- Weight 1Kg
How it works:
Description

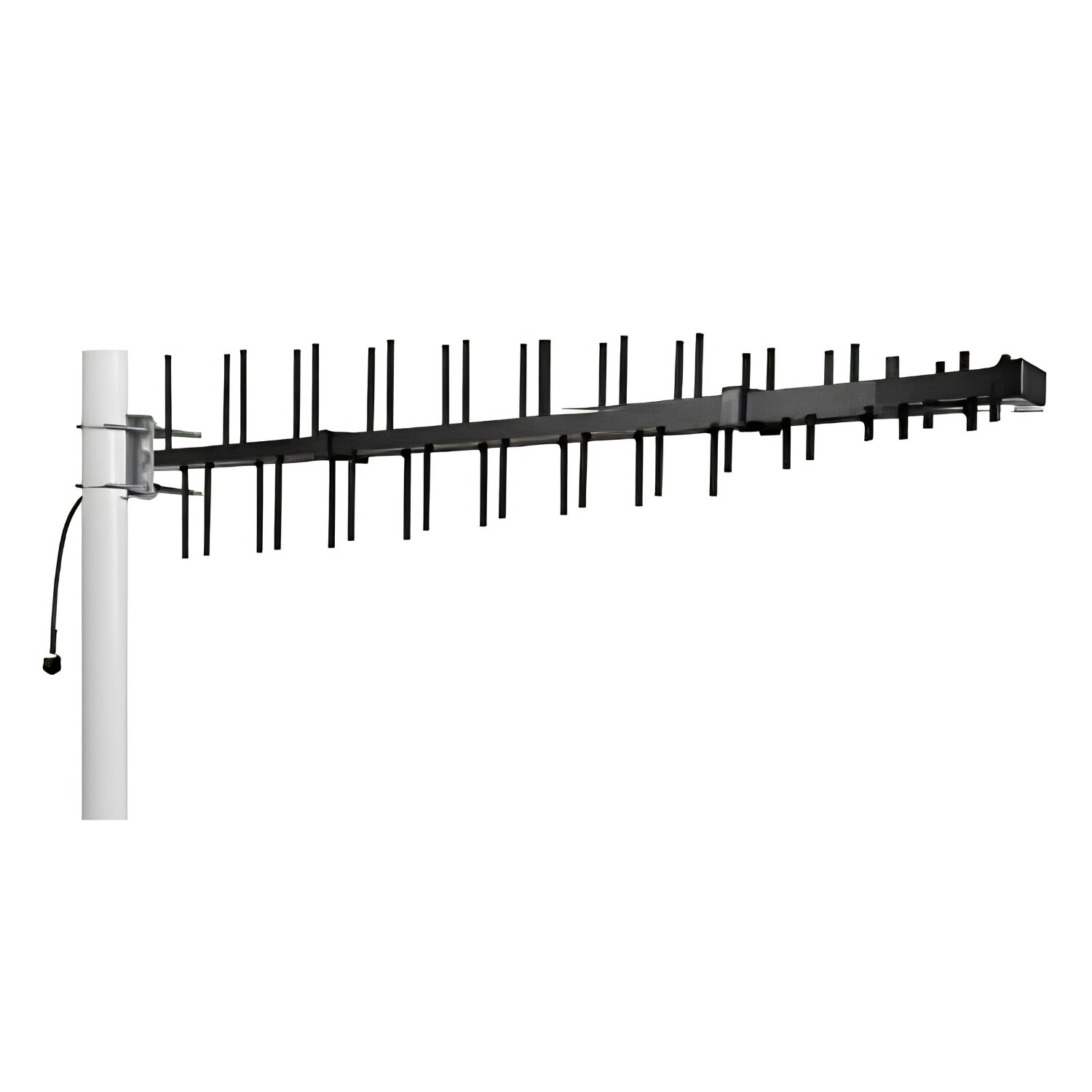

The LPDA Antenna 698~4000MHz – 14dBi is an excellent full spectrum outdoor donor antenna. It is terminated with a N Type female. All mast mountable brackets are included. The LPDA Antenna can be supplied with per-assembled lengths of low-loss cable for easy installation and cost saving. The LPDA or log-periodic antenna is not a Yagi antenna as incorrectly referred to.
It has a high quality black powder coating finish and is therefore corrosion proof and is high wind resistant.
A Yagi is a single band antenna where the LPDA is a ultra wide band antenna.
The LPDA Antenna has the advantage of a high gain, 14dBi, with a good F/B Front to Back Ratio.
It covers all MNO Bands ,B20,B28,B8,B3,B1,B41
The LPDA Antenna can be wall or mast mounted and due to its flat shape is aesthetically pleasing .
Specification:
- SKU : LPDA-698-4000-D
- Freq.: 698-4000 MHz
- Gain: 14 dBi
- VSWR: ≤1.5
- HPBWH: 70° 50°
- Front to Back Ratio >15dB
- Polarization: Vertical
- Antenna Boom steel
- Radials Aluminum.
- Black powder coated
- Plated steel wall/mast mount bracket – U bolts included
Application:
- Outdoors, in tunnels, large arias such as basements. Point to point installations.
- LPWAN, LoRa, LTE-M, NB-IoT, IoT, M2M applications.
- Cellular networks 2G,3G, 4G & 5G.
- Correct name – Donor Antenna.
- Can also use for these applications IEEE 802.11b/g WiFi applications.
- Adheres to safety standards in R.S.A.
- Mast or wall mountable with brackets included.
- Terminations is N Type Female.
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 136 × 26 × 9 cm |
